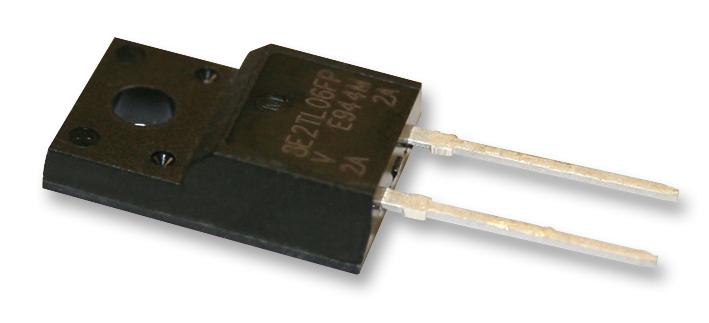

WOLFSPEED - C3D04060F - Silicon Carbide Schottky Diode, Z-Rec 600V Series, Single, 600 V, 6 A, 8.5 nC, TO-220-F2
- Product Range: Z-Rec 600V Series
- Diode Configuration: Single
- Repetitive Reverse Voltage Vrrm Max: 600V
- Continuous Forward Current If: 6A
- Total Capacitive Charge Qc: 8.5nC
- Diode Case Style: TO-220-F2
- No. of Pins: 2 Pin
- Junction Temperature Tj Max: 175°C
- Automotive Qualification Standard: -
- Diode Type: SiC Schottky
- Forward Current If(AV): 4A
- Forward Surge Current Ifsm Max: 30A
- Forward Voltage VF Max: 1.7V
- No. of Pins: 2Pins
- Operating Temperature Max: 175°C
- Operating Temperature Min: -55°C
- Semiconductor Technology: SiC
