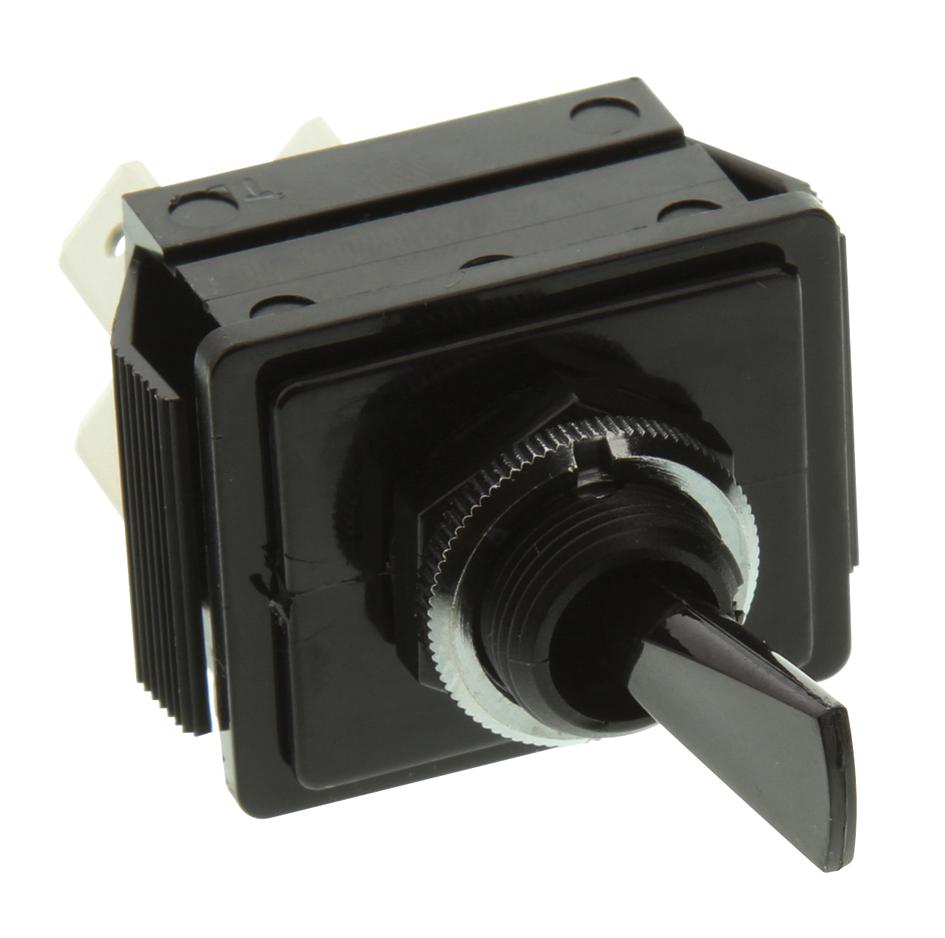

ARCOLECTRIC (BULGIN LIMITED) - C1750HOAAC - Toggle Switch, Off-On, DPST, Non Illuminated, 1750, Panel Mount, 16 A
- Switch Operation: Off-On
 - Contact Configuration: DPST
 - Illumination: Non Illuminated
 - Product Range: 1750 Series
 - Contact Current Max: 16A
 - Switch Mounting: Panel
 - Contact Voltage AC Nom: 250V
 - Switch Terminals: Quick Connect, Solder
 - Contact Voltage DC Nom: -
 - SVHC: No SVHC (27-Jun-2018)
 - Actuation Type: Flat Lever
 - Bush Thread Length: 10mm
 - Contact Current @ Contact Voltage AC Max: 10A
 - Contact Current @ Contact Voltage DC Max: 20A
 - Contact Current AC Max: 16A
 - Contact Current DC Max: 20A
 - Contact Current Rating: 16A
 - Contact Resistance: 100mohm
 - Contact Voltage AC Max: 250V
 - Contact Voltage DC Max: 24V
 - External Depth: 18mm
 - External Length / Height: 32.5mm
 - External Width: 25.4mm
 - Height: 32.5mm
 - Inductive Current Rating: 4A
 - Lever Length: 17.8mm
 - Operating Temperature Max: 85°C
 - Operating Temperature Min: 0°C
 - Panel Cutout Diameter: 12.7mm
 - Resistive Current Rating: 16A
 - Tab Width: 6.3mm
 - Thread Size: 15/32" x 32 NS
