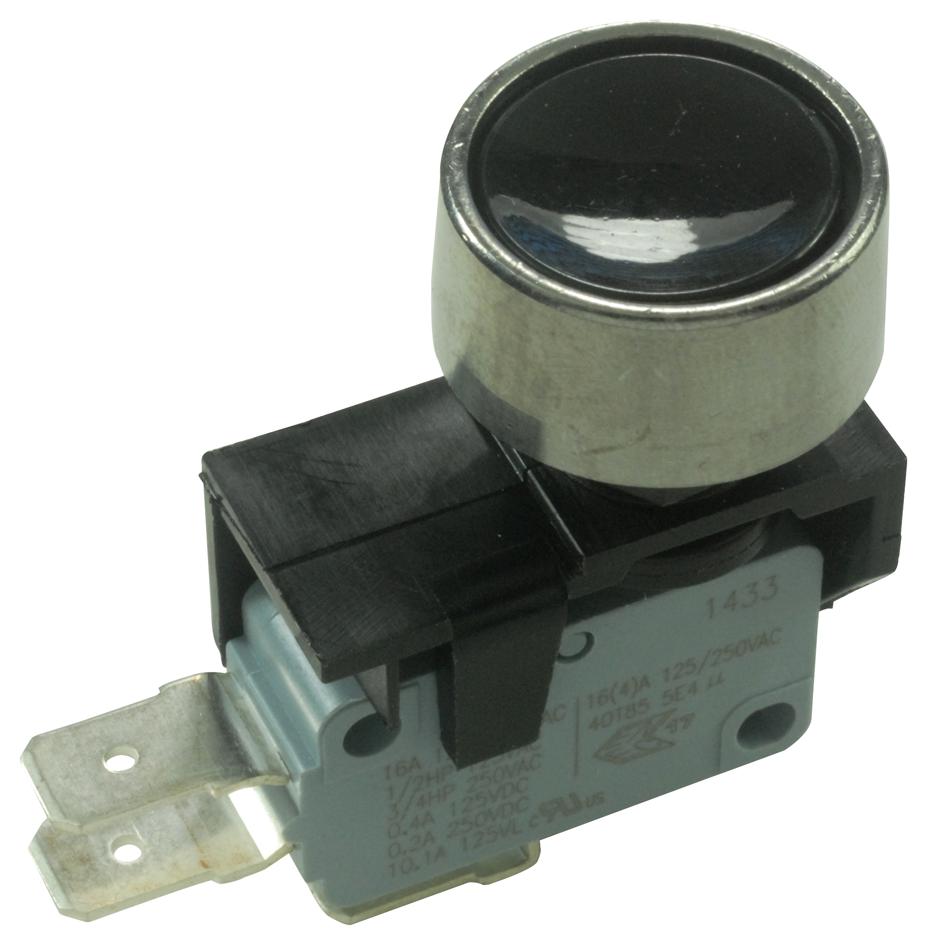

ARCOLECTRIC (BULGIN LIMITED) - C0911KBAAJ - Industrial Pushbutton Switch, 0900 Series, 12.7 mm, SPDT, On-(On), Round, Black
- Switch Operation: On-(On)
- Contact Configuration: SPDT
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: -
- Contact Current Max: 16A
- Switch Terminals: Quick Connect, Solder
- Product Range: 0900 Series
- SVHC: No SVHC (27-Jun-2018)
- Actuation Type: Round
- Actuator / Cap Colour: Black
- Bezel Depth: 10.9mm
- Bezel Diameter: 22mm
- Colour: Black
- Contact Current @ Contact Voltage AC Max: 15A
- Contact Current AC Max: 16A
- Contact Current DC Max: 400mA
- Contact Resistance: 10mohm
- Contact Voltage VAC: 250V
- Contact Voltage VDC: 125V
- External Depth: 43mm
- External Length / Height: 31.6mm
- External Width: 15mm
- IP Rating: IP68
- Illumination Colour: Non-illuminated
- Microswitch Type: Snap Action
- No. of Mechanical Operations: 10000000
- Operating Force Max: 280gf
- Operating Temperature Max: 85°C
- Operating Temperature Min: 0°C
- Panel Cutout Diameter: 12.7mm
- Panel Thickness Max: 5mm
- Pushbutton Actuator Style: Round
- Pushbutton Switch Type: Industrial
- Switch Case: Nylon (Polyamide)
- Switch Mounting: Panel
