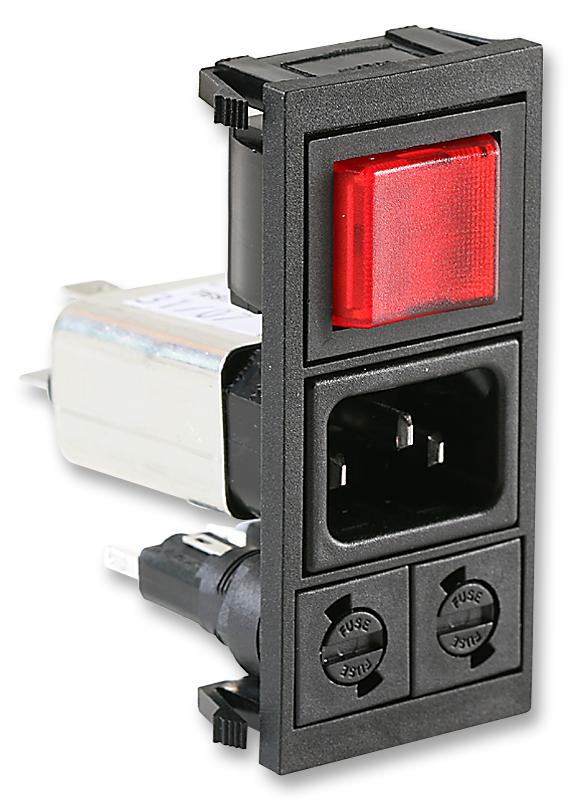

BULGIN LIMITED - BZV03/A0620/06 - Filtered IEC Power Entry Module, IEC C14, 6 A, 250 VAC, 2-Pole Switch, 2-Pole Fuse Holder
- Product Range: -
- Gender: Plug, Receptacle
- Voltage Rating: 250V
- Current Rating: 6A
- Connector Mounting: Panel Mount
- Contact Termination Type: Quick Connect
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: CSA, SEMKO, UL, VDE
- Behind Panel Depth: 60mm
- Capacitance: 0.015µF
- Capacitance X: 0.015µF
- Capacitance Y: 2200pF
- External Depth: 60mm
- External Length / Height: 35mm
- External Width: 77mm
- Filter Terminals: Quick Connect
- Filter Type: IEC, Mains
- Fuse Size Held: 5mm x 20mm
- Inductance: 0.7mH
- Inductance Min: 700µH
- Leakage Current: 373µA
- Leakage Current Max: 373µA
- No. of Fuses: 2Fuses
- No. of Inductors: 2
- No. of Phases: Single Phase
- No. of X Type Capacitors: 1
- No. of Y Type Capacitors: 2
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Panel Cutout Depth: 76.5mm
- Panel Cutout Width: 34.4mm
- Panel Thickness Max: 3mm
- Panel Thickness Min: 1.5mm
- Supply Frequency Max: 400Hz
- Supply Frequency Min: 50Hz
- Switch Action: DPST
- Voltage Rating VAC: 250V
