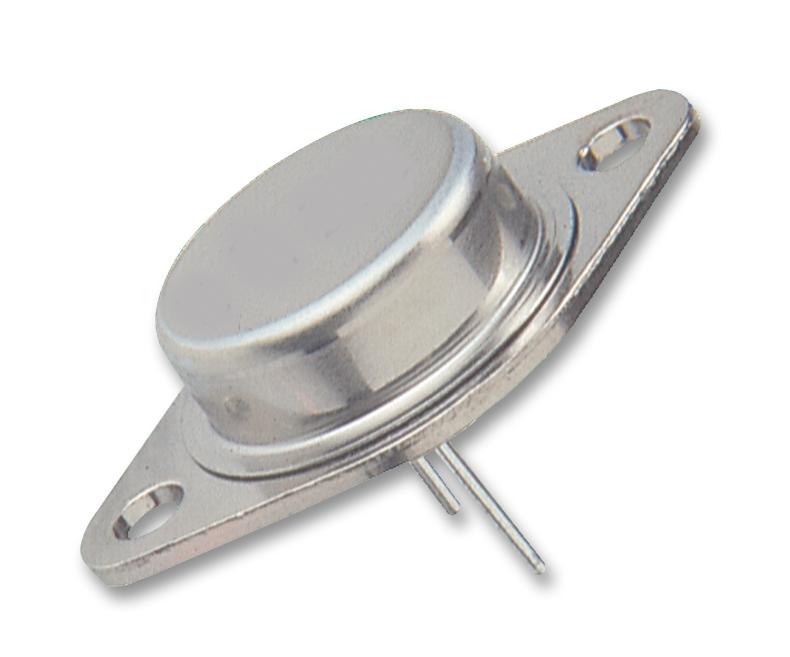

BUX80 Transistor, NPN, TO-3 multicomp Pro

MULTICOMP PROUGS :BUX80 Code de commande:1165901

Prix:
Prix ​​promotionnel€12,99

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1130 unité)

Documents et téléchargements

description

MULTICOMP PRO - BUX80 - Bipolar (BJT) Single Transistor, NPN, 400 V, 10 A, 100 W, TO-3, Through Hole

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 400V
  • Transition Frequency ft: -
  • Power Dissipation Pd: 100W
  • DC Collector Current: 10A
  • DC Current Gain hFE: 30hFE
  • Transistor Case Style: TO-3
  • No. of Pins: 2Pins
  • Operating Temperature Max: 200°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (27-Jun-2018)
  • Av Current Ic: 10A
  • Collector Emitter Saturation Voltage Vce(on): 1.5V
  • Continuous Collector Current Ic Max: 10A
  • Current Ic @ Vce Sat: 5A
  • Current Ic Continuous a Max: 10A
  • Current Ic hFE: 1.2A
  • Fall Time @ Ic: 0.5µs
  • Full Power Rating Temperature: 25°C
  • Hfe Min: 30
  • No. of Transistors: 1
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +200°C
  • Power Dissipation Ptot Max: 100W
  • Termination Type: Through Hole
  • Voltage Vces: 800V
