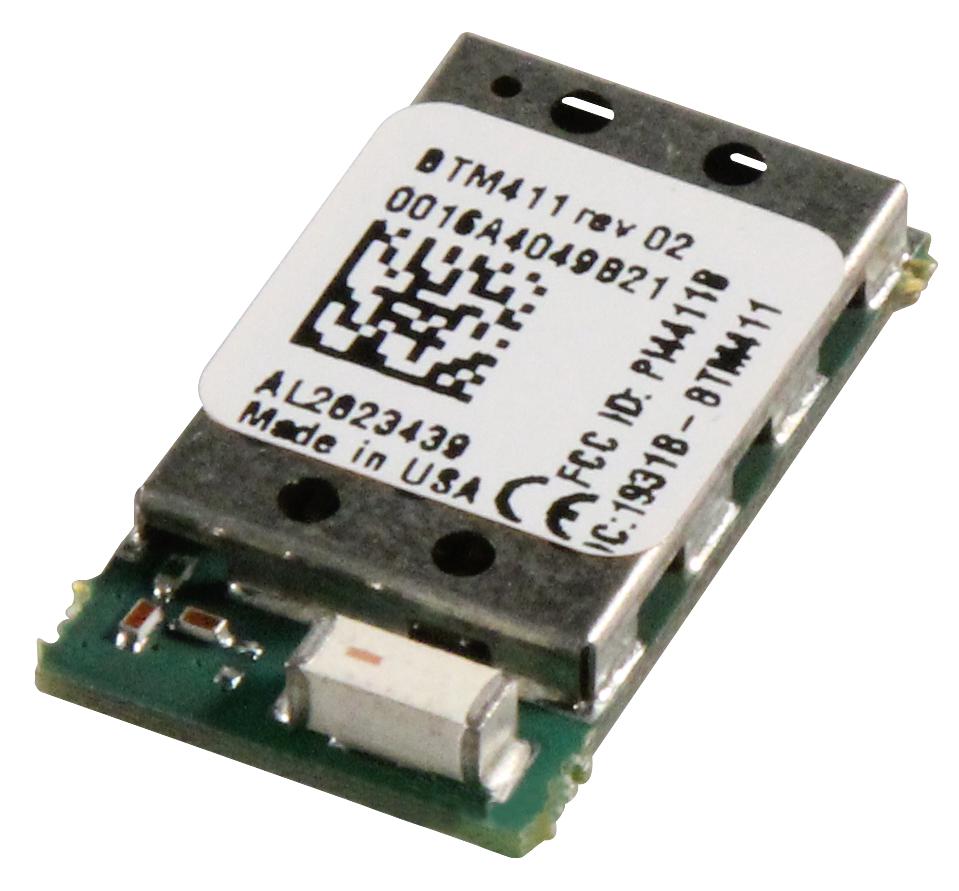

LAIRD CONNECTIVITY - BTM411 - Class 2 Bluetooth® v2.1 AT Data Module with Integrated Antenna
- Bluetooth Version: Bluetooth 2.1 + EDR
- Supply Voltage Min: 3V
- Supply Voltage Max: 3.3V
- Signal Range Max: 50m
- Data Rate: 2.1Mbps
- Bluetooth Class: Class 2
- Receive Sensitivity: -86dBm
- Operating Temperature Min: -30°C
- Operating Temperature Max: 70°C
- Product Range: -
- Operating Temperature Range: -30°C to +70°C
- Physical Interfaces: UART
- Receiving Signal Range: 50m
- Supply Voltage Range: 3V to 3.3V
