description

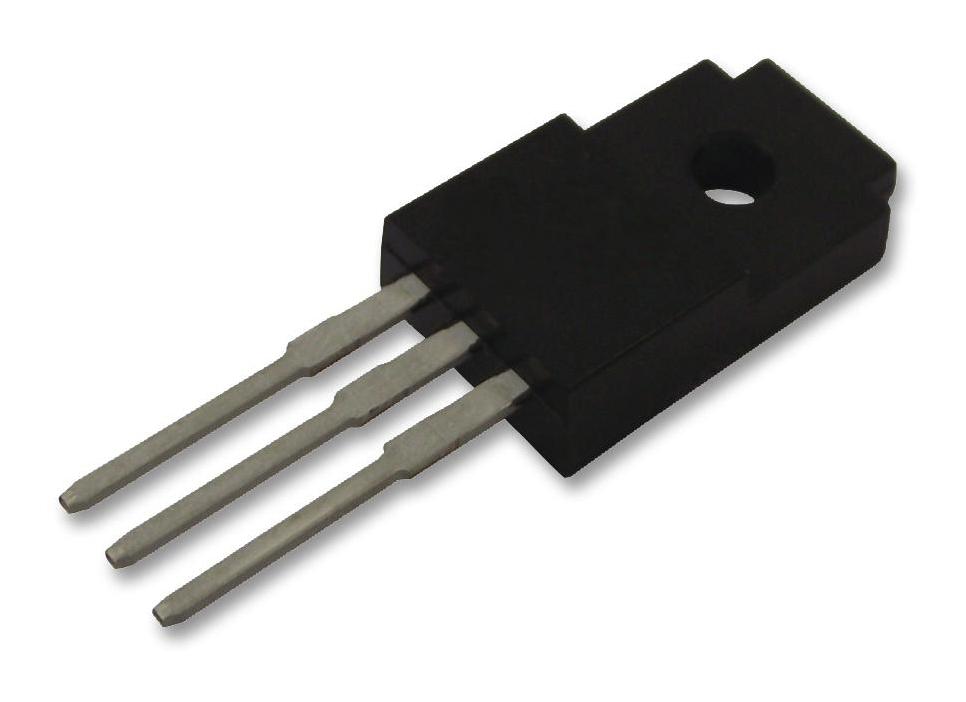

WEEN SEMICONDUCTORS - BT138X-600,127 - Triac, 600 V, 12 A, TO-220FP, 1 V, 95 A, 30 mA
- Peak Repetitive Off-State Voltage, Vdrm: 600V
- On State RMS Current IT(rms): 12A
- Triac Case Style: TO-220FP
- Gate Trigger Current Max (QI), Igt: 70mA
- Gate Trigger Voltage Max Vgt: 1V
- Peak Gate Power: 5W
- Peak Non Rep Surge Current Itsm 50Hz: 95A
- Holding Current Max Ih: 30mA
- No. of Pins: 3Pins
- Operating Temperature Max: 125°C
- Product Range: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
