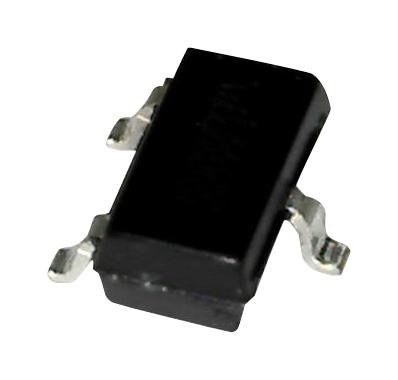

NEXPERIA - BST82,215 - Power MOSFET, N Channel, 100 V, 190 mA, 5 ohm, SOT-23, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 190mA
- Drain Source Voltage Vds: 100V
- On Resistance Rds(on): 5ohm
- Rds(on) Test Voltage Vgs: 5V
- Threshold Voltage Vgs: 2V
- Power Dissipation Pd: 830mW
- Transistor Case Style: SOT-23
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Current Id Max: 190mA
- Current Temperature: 25°C
- No. of Transistors: 1
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Pin Configuration: 1g, 2s, 3d
- Power Dissipation Ptot Max: 830mW
- Pulse Current Idm: 800mA
- Termination Type: Surface Mount Device
- Voltage Vds Typ: 100V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 5V
