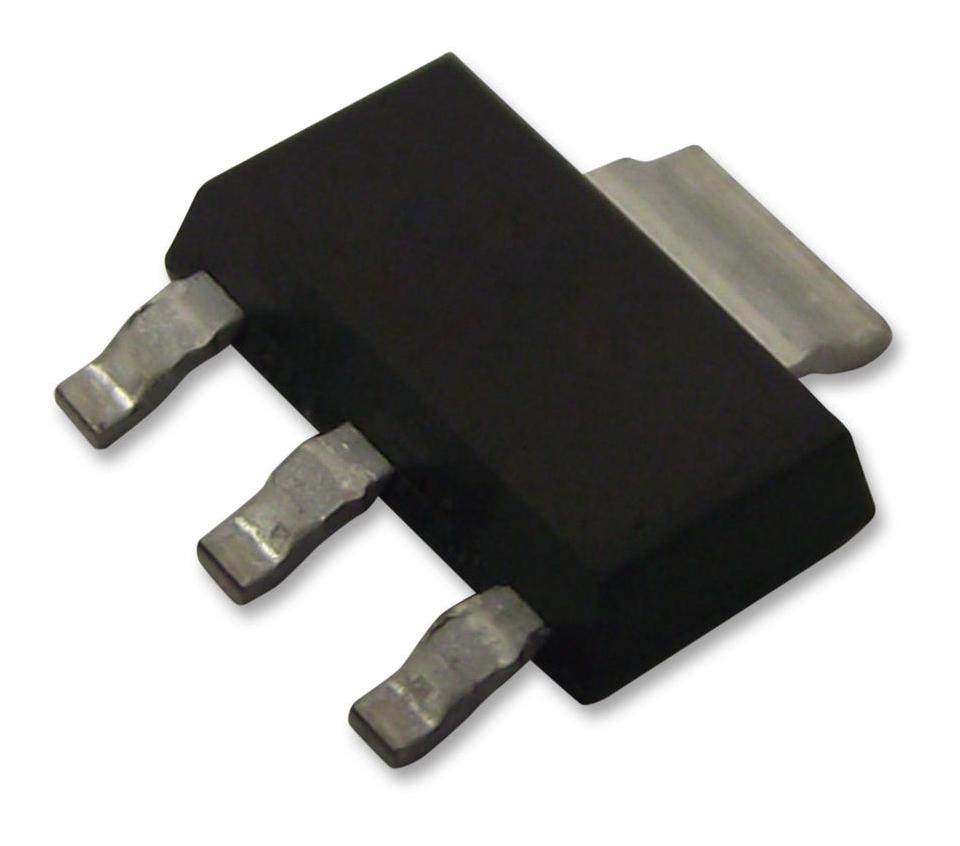

INFINEON - BSP372NH6327XTSA1 - Power MOSFET, N Channel, 100 V, 1.8 A, 0.153 ohm, SOT-223, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 1.8A
- Drain Source Voltage Vds: 100V
- On Resistance Rds(on): 0.153ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 1.4V
- Power Dissipation Pd: 1.8W
- Transistor Case Style: SOT-223
- No. of Pins: 4Pins
- Operating Temperature Max: 150°C
- Product Range: OptiMOS Series
- Automotive Qualification Standard: AEC-Q101
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
