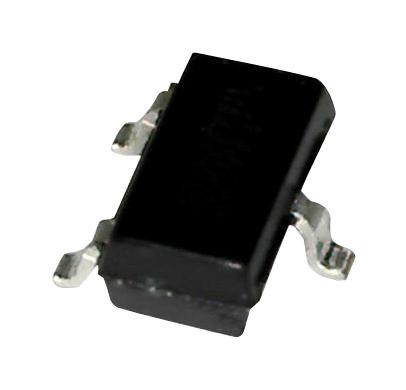

DIODES INC. - BS250FTA - Power MOSFET, P Channel, 45 V, 90 mA, 9 ohm, SOT-23, Surface Mount
- Transistor Polarity: P Channel
- Continuous Drain Current Id: -90mA
- Drain Source Voltage Vds: -45V
- On Resistance Rds(on): 9ohm
- Rds(on) Test Voltage Vgs: -10V
- Threshold Voltage Vgs: -3.5V
- Power Dissipation Pd: 330mW
- Transistor Case Style: SOT-23
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Current Id Max: -90mA
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Voltage Vgs Max: 20V
