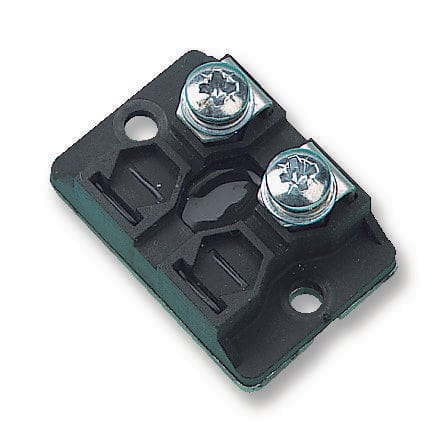

CGS - TE CONNECTIVITY - BDS2A10022RK - Resistor, Screw, 22 ohm, BDS100, 100 W, ± 10%, Screw, 500 V
- Resistance: 22ohm
- Product Range: BDS100 Series
- Power Rating: 100W
- Resistance Tolerance: ± 10%
- Resistor Terminals: Screw
- Voltage Rating: 500V
- Resistor Element Material: Thick Film
- Temperature Coefficient: ± 150ppm/°C
- External Depth: 25.4mm
- External Length / Height: 38mm
- External Width: 25.5mm
- Fixing Centres: 30mm
- Fixing Hole Diameter: 4.5mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Power Rating with Heatsink: 100W
- Resistor Case Style: SOT-227
- Resistor Mounting: Panel
- Temperature Coeff. +: 150ppm/°C
- Temperature Coeff. -: 150ppm/°C
- Tolerance +: 10%
- Tolerance -: 10%
- Voltage Rating V DC: 500V
