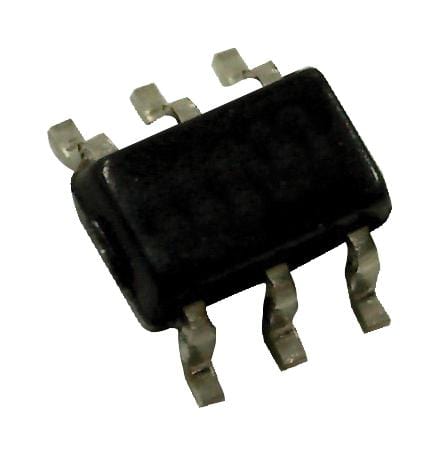

INFINEON - BCR320UE6327HTSA1 - Led Driver, 1 Output, Constant Current, 1.4V-27V in, 10kHz switch, 16V/250mA out, SC-74-6
- Device Topology: Constant Current
- No. of Outputs: 1Outputs
- Output Current: 250mA
- Output Voltage: 16V
- Driver Case Style: SC-74
- No. of Pins: 6Pins
- Input Voltage Min: 1.4V
- Input Voltage Max: 27V
- Switching Frequency: 10kHz
- Operating Temperature Min: 0°C
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: AEC-Q100
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Device Type: LED
- Dimming Control Type: PWM
- LED Driver Application: Architectural, Emergency Lighting
- Operating Temperature Range: 0°C to +150°C
- Supply Voltage Max: 24V
- Termination Type: Surface Mount Device
