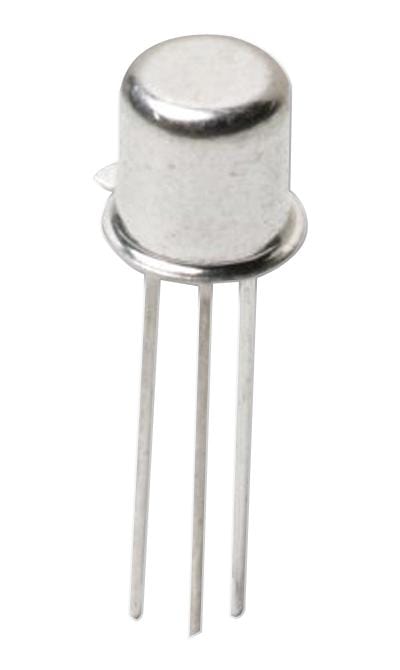

BC477 Transistor, PNP, TO-18 multicomp Pro

MULTICOMP PROUGS :BC477 Code de commande:9206841

Prix:
Prix ​​promotionnel€2,53

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (852 unité)

Documents et téléchargements

description

MULTICOMP PRO - BC477 - Bipolar (BJT) Single Transistor, General Purpose, PNP, 80 V, 150 mA, 300 mW, TO-18, Through Hole

  • Transistor Polarity: PNP
  • Collector Emitter Voltage V(br)ceo: 80V
  • Transition Frequency ft: -
  • Power Dissipation Pd: 300mW
  • DC Collector Current: 150mA
  • DC Current Gain hFE: 160hFE
  • Transistor Case Style: TO-18
  • No. of Pins: 3Pins
  • Operating Temperature Max: 200°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Collector Emitter Saturation Voltage Vce(on): -250mV
  • Continuous Collector Current Ic Max: 150mA
  • Current Ic Continuous a Max: 150mA
  • Current Ic hFE: 2mA
  • Gain Bandwidth ft Min: 100MHz
  • Gain Bandwidth ft Typ: 100MHz
  • Hfe Min: 50
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +200°C
  • Pin Configuration: a
  • Power Dissipation Ptot Max: 360mW
  • Voltage Vcbo: 90V
