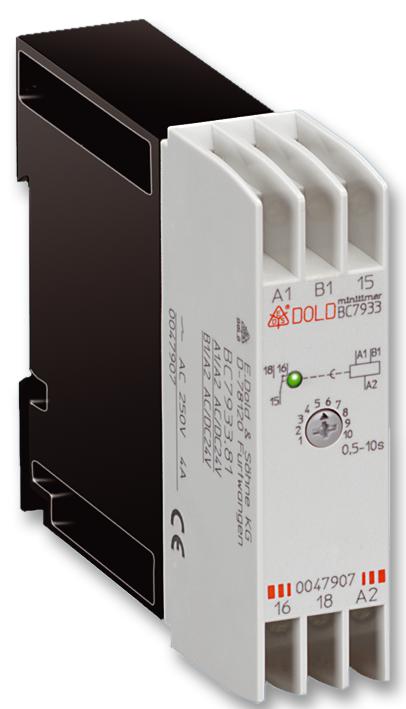

DOLD - BC 7933N.81 AC 110 - 240V0,5-10M. - Analogue Timer, BC7933N, Delay-On-Release, 5 s, 10 min, 1 Ranges, 1 Changeover Relay
- Product Range: BC7933N Series
- Timer Functions: Delay-On-Release
- Time Min: 5s
- Time Max: 10min
- No. of Timing Ranges: 1Ranges
- Timer Output: 1 Changeover Relay
- Supply Voltage Max: 240VAC
- Current Rating Nom: 4A
- Connection / Termination: Screw Terminals
- SVHC: No SVHC (15-Jan-2018)
- Adjustment Type: Screwdriver Slot
- Coil Voltage VAC Nom: 240V
- Contact Configuration: SPCO
- Contact Current AC Max: 3A
- Contact Voltage AC Max: 230V
- Delay Time Range: 0.5min to 10min
- External Depth: 97mm
- External Length / Height: 84mm
- External Width: 22.5mm
- Frequency: 50Hz
- Nom Input Voltage: 240VAC
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
- Operating Time Range: 0,5-10min
- Relay Mounting: DIN Rail
- Supply Voltage Min: 110VAC
- Switch Current Max: 4A
- Switching Current Max: 4A
- Timing Adjustment: Screwdriver Slot
- Type: 0052921
