description

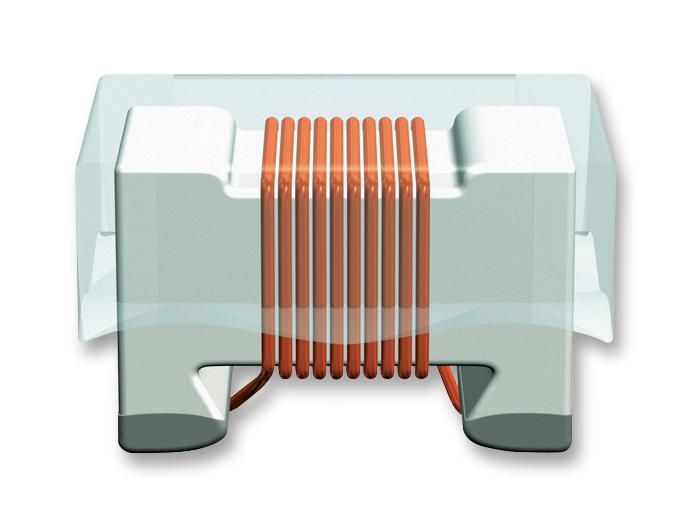

EPCOS - B82498F3101J000 - Wirewound Inductor, 100 nH, 0.28 ohm, 1.35 GHz, 450 mA, 0805 [2012 Metric], B82498F
- Inductance: 100nH
- Product Range: B82498F Series
- DC Current Rating: 450mA
- High Frequency Inductor Case: 0805 [2012 Metric]
- Inductor Construction: Wirewound
- DC Resistance Max: 0.28ohm
- Inductance Tolerance: ± 5%
- Self Resonant Frequency Min: 1.35GHz
- SVHC: No SVHC (07-Jul-2017)
- Core Material: Ceramic
- Inductor Case Style: 0805 [2012 Metric]
- Q Factor: 55
- Q Test Frequency: 500MHz
- Reel Quantity: 3000
