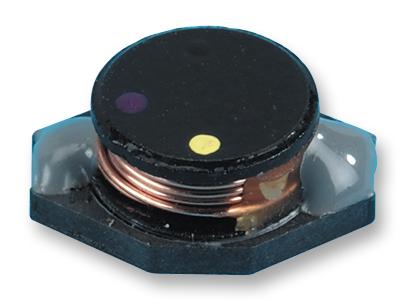

EPCOS - B82479A1334M000 - Power Inductor (SMD), 330 µH, 1 A, Unshielded, 1.9 A, 18.54mm x 15.24mm x 7.11mm
- Inductance: 330µH
- RMS Current (Irms): 1A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 1.9A
- Product Range: -
- Power Inductor Case: 18.54mm x 15.24mm x 7.11mm
- DC Resistance Max: 0.56ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
- Core Material: Ferrite
- DC Current Rating: 1A
- Inductor Case Style: SMD
- Reel Quantity: 250
