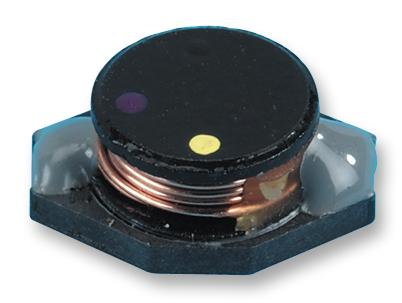

EPCOS - B82479A1333M000 - Wirewound Inductor, 33 µH, 0.066 ohm, 20 MHz, 3 A, B82479A1
- Inductance: 33µH
- RMS Current (Irms): 3A
- Inductor Construction: Wirewound
- Saturation Current (Isat): 5.5A
- Product Range: B82479A1 Series
- Power Inductor Case: 18.54mm x 15.24mm x 7.11mm
- DC Resistance Max: 0.066ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
- Climatic Category: 40/85/56
- Inductance Measurement Frequency: 100kHz
- Inductor Type: Power Inductor
- No. of Pins: 2Pins
- Resonant Frequency: 20MHz
- Self Resonant Frequency Min: 20MHz
- Termination Type: Surface Mount Device
- Tolerance +: 20%
