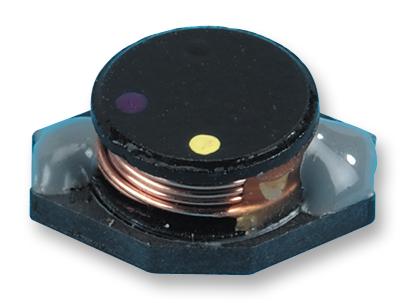

EPCOS - B82479A1104M - Wirewound Inductor, 100 µH, 0.19 ohm, 20 MHz, 1.8 A, 18.54mm x 15.24mm x 7.11mm, B82479A1
- Inductance: 100µH
- RMS Current (Irms): 1.8A
- Inductor Construction: Wirewound
- Saturation Current (Isat): 3A
- Product Range: B82479A1 Series
- Power Inductor Case: 18.54mm x 15.24mm x 7.11mm
- DC Resistance Max: 0.19ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
- Climatic Category: 40/85/56
- Inductance Measurement Frequency: 100kHz
- Inductor Type: Power Inductor
- No. of Pins: 2Pins
- Resonant Frequency: 20MHz
- Termination Type: Surface Mount Device
- Tolerance +: 20%
