description

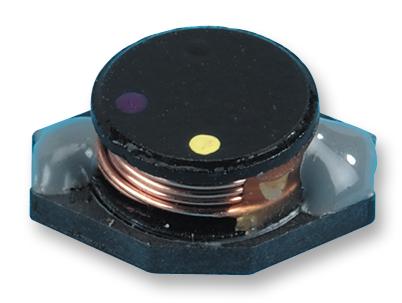

EPCOS - B82479A1103M000 - Wirewound Inductor, 10 µH, 0.032 ohm, 20 MHz, 4.3 A, 18.54mm x 15.24mm x 7.11mm, B82479A
- Inductance: 10µH
- RMS Current (Irms): 4.3A
- Inductor Construction: Wirewound
- Saturation Current (Isat): 10A
- Product Range: -
- Power Inductor Case: 18.54mm x 15.24mm x 7.11mm
- DC Resistance Max: 0.032ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (07-Jul-2017)
- Climatic Category: 40/85/56
- Inductance Measurement Frequency: 100kHz
- Inductor Type: Power Inductor
- No. of Pins: 2Pins
- Resonant Frequency: 20MHz
- Termination Type: Surface Mount Device
- Tolerance +: 20%
