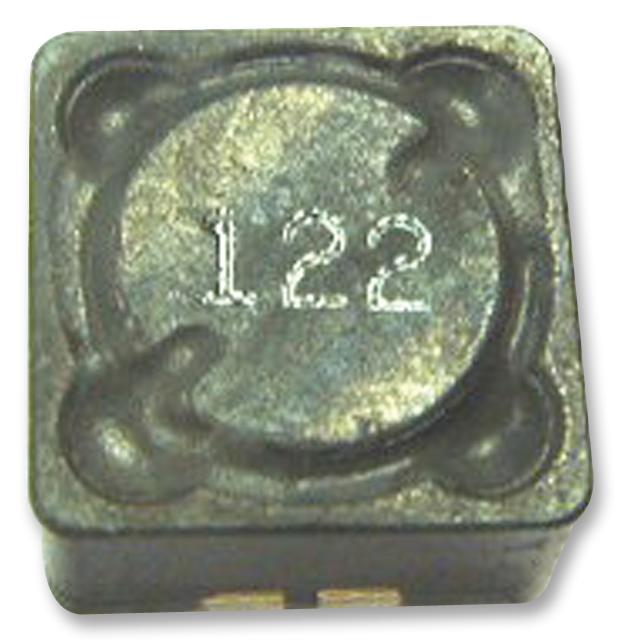

EPCOS - B82477G4684M000 - Power Inductor (SMD), 680 µH, 680 mA, Shielded, 780 mA, 12.8mm x 12.8mm x 8mm
- Inductance: 680µH
- RMS Current (Irms): 680mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 780mA
- Product Range: -
- Power Inductor Case: 12.8mm x 12.8mm x 8mm
- DC Resistance Max: 1.24ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (07-Jul-2017)
- Climatic Category: 55/125/56
- External Depth: 12.8mm
- External Length / Height: 8mm
- External Width: 12.8mm
- Inductance Measurement Frequency: 100kHz
- Inductor Type: Inductor
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Reel Diameter: 330mm
- Reel Quantity: 400
- Tape Width: 24mm
- Termination Type: Surface Mount Device
