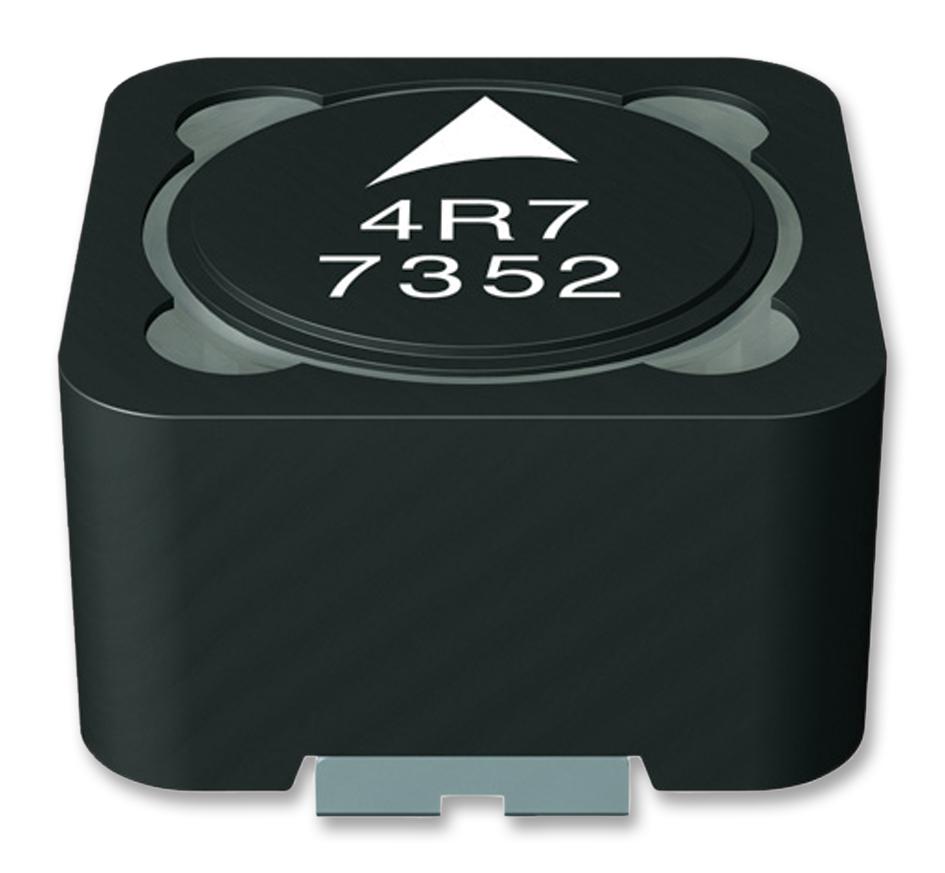

EPCOS - B82477G4472M000 - Power Inductor (SMD), 4.7 µH, 6.8 A, Shielded, 8.6 A, B82477G4
- Inductance: 4.7µH
- RMS Current (Irms): 6.8A
- Inductor Construction: Shielded
- Saturation Current (Isat): 8.6A
- Product Range: B82477G4 Series
- Power Inductor Case: 12.8mm x 12.8mm x 8mm
- DC Resistance Max: 0.014ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
- Climatic Category: 55/125/56
- External Depth: 12.8mm
- External Length / Height: 8mm
- External Width: 12.8mm
- Inductance Measurement Frequency: 100kHz
- Inductor Type: Power Inductor
- No. of Pins: 2Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Reel Diameter: 330mm
- Reel Quantity: 400
- Tape Width: 24mm
- Termination Type: Surface Mount Device
