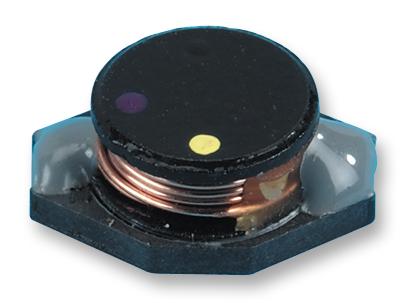

EPCOS - B82476A1473M000 - Power Inductor (SMD), 47 µH, 1.8 A, Unshielded, 1.6 A, B82476A1, 12.95mm x 9.4mm x 5.08mm
- Inductance: 47µH
- RMS Current (Irms): 1.8A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 1.6A
- Product Range: B82476A1 Series
- Power Inductor Case: 12.95mm x 9.4mm x 5.08mm
- DC Resistance Max: 0.12ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
- Core Material: Ferrite
- DC Current Rating: 1.6A
- Inductor Case Style: SMD
- Reel Quantity: 750
