description

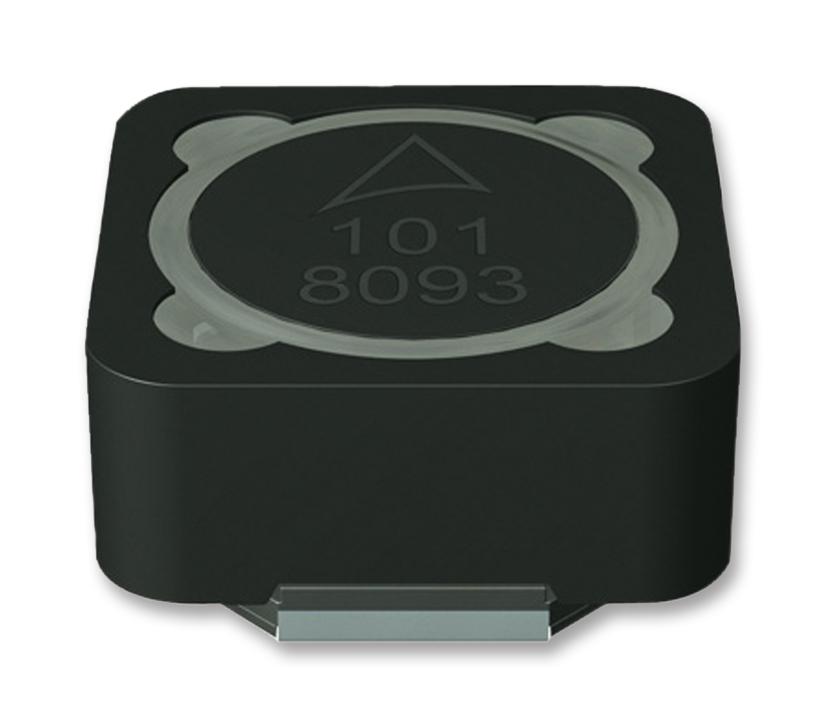

EPCOS - B82464P4223M000 - Power Inductor (SMD), 22 µH, 2.25 A, Shielded, 2.5 A, B82464P4, 10.4mm x 10.4mm x 4.8mm
- Inductance: 22µH
- RMS Current (Irms): 2.25A
- Inductor Construction: Shielded
- Saturation Current (Isat): 2.5A
- Product Range: B82464P4 Series
- Power Inductor Case: 10.4mm x 10.4mm x 4.8mm
- DC Resistance Max: 0.052ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
- Automotive Qualification Standard: AEC-Q200
