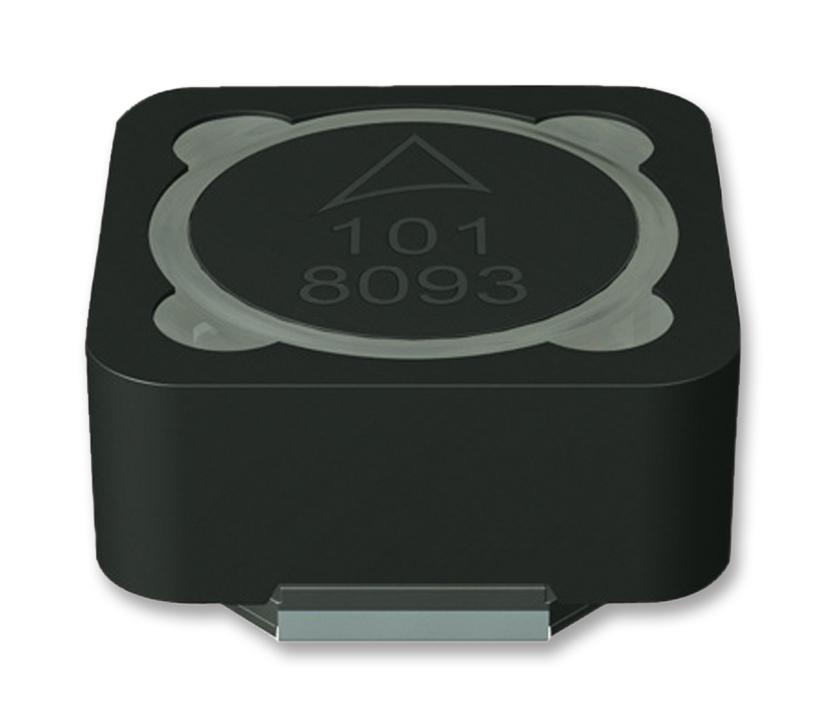

EPCOS - B82464P4105M - Power Inductor (SMD), 1 mH, 340 mA, Shielded, 350 mA, B82464P4, 10.4mm x 10.4mm x 4.8mm
- Inductance: 1mH
- RMS Current (Irms): 340mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 350mA
- Product Range: B82464P4 Series
- Power Inductor Case: 10.4mm x 10.4mm x 4.8mm
- DC Resistance Max: 2.2ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
- Automotive Qualification Standard: AEC-Q200
