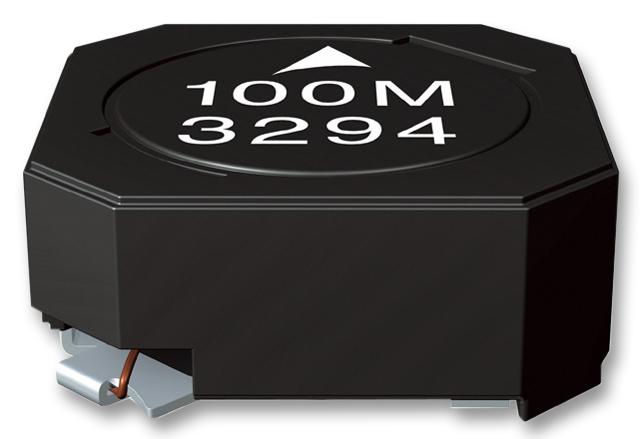

EPCOS - B82464G4684M000 - Power Inductor (SMD), 680 µH, 420 mA, Shielded, 460 mA, B82464G4
- Inductance: 680µH
- RMS Current (Irms): 420mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 460mA
- Product Range: B82464G4 Series
- Power Inductor Case: 10.4mm x 10.4mm x 4.8mm
- DC Resistance Max: 1.3ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
- Climatic Category: 55/125/56
- External Depth: 10.4mm
- External Length / Height: 4.8mm
- External Width: 10.4mm
- Inductance Measurement Frequency: 0.1MHz
- Inductor Type: Power Inductor
- No. of Pins: 2Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Reel Quantity: 750
- Resonant Frequency: 2MHz
- Tape Width: 16mm
- Termination Type: Surface Mount Device
- Tolerance +: 20%
