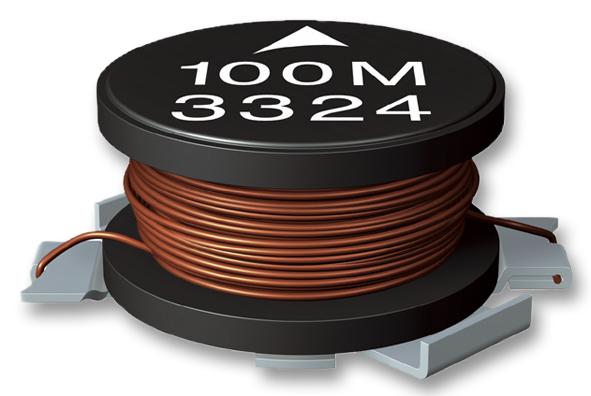

EPCOS - B82464A4472M000 - Power Inductor (SMD), 4.7 µH, 4.3 A, Unshielded, 5.6 A, B82464A4
- Inductance: 4.7µH
- RMS Current (Irms): 4.3A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 5.6A
- Product Range: B82464A4 Series
- Power Inductor Case: 10.4mm x 10.4mm x 4.8mm
- DC Resistance Max: 0.018ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
- Core Material: Ferrite
- DC Current Rating: 4.3A
- Inductor Case Style: SMD
- Reel Quantity: 750
