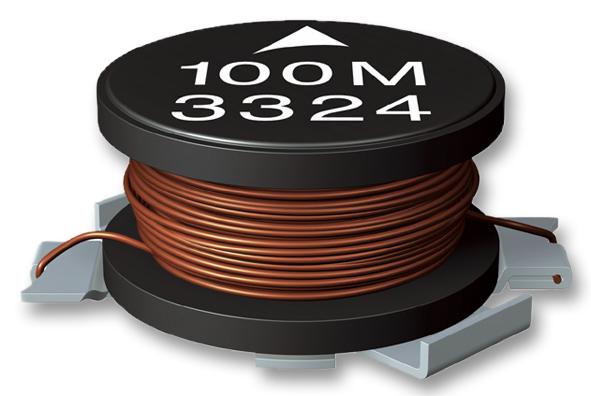

EPCOS - B82464A4334K000 - Power Inductor (SMD), 330 µH, 580 mA, Unshielded, 700 mA, B82464A4
- Inductance: 330µH
- RMS Current (Irms): 580mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 700mA
- Product Range: B82464A4 Series
- Power Inductor Case: 10.4mm x 10.4mm x 4.8mm
- DC Resistance Max: 0.7ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (27-Jun-2018)
- Climatic Category: 55/125/56
- External Depth: 10mm
- External Length / Height: 4.8mm
- External Width: 10mm
- Inductance Measurement Frequency: 0.1MHz
- Inductor Type: Power Inductor
- No. of Pins: 2Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Reel Quantity: 750
- Resonant Frequency: 4MHz
- Tape Width: 16mm
- Termination Type: Surface Mount Device
- Tolerance +: 10%
