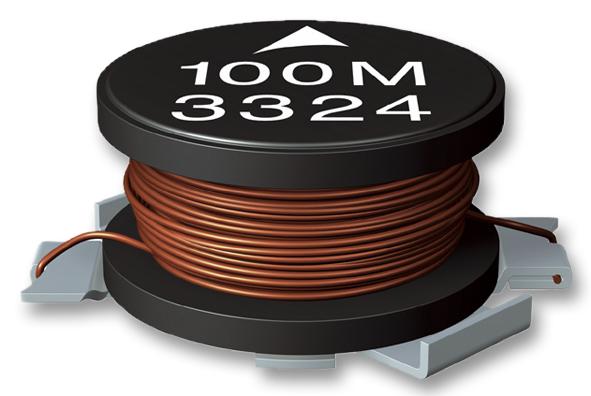

EPCOS - B82464A4333K000 - Power Inductor (SMD), 33 µH, 1.8 A, Unshielded, 2.2 A, 10.4mm x 10.4mm x 4.8mm
- Inductance: 33µH
- RMS Current (Irms): 1.8A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 2.2A
- Product Range: -
- Power Inductor Case: 10.4mm x 10.4mm x 4.8mm
- DC Resistance Max: 0.1ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (27-Jun-2018)
- Core Material: Ferrite
- DC Current Rating: 1.8A
- Inductor Case Style: SMD
- Reel Quantity: 750
