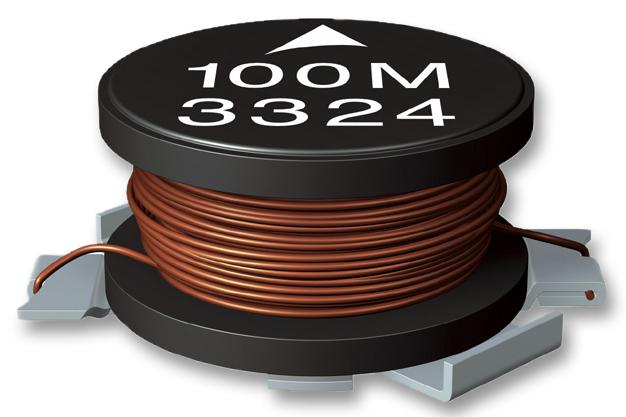

EPCOS - B82462A4222M000 - Power Inductor (SMD), 2.2 µH, 2.3 A, Unshielded, 3.8 A, B82462A4
- Inductance: 2.2µH
- RMS Current (Irms): 2.3A
- Inductor Construction: Unshielded
- Saturation Current (Isat): 3.8A
- Product Range: B82462A4 Series
- Power Inductor Case: 6mm x 6mm x 3mm
- DC Resistance Max: 0.042ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
- Attenuation Frequency Range: 100 kHz
- Climatic Category: 55/125/56
- External Depth: 6mm
- External Length / Height: 3mm
- External Width: 6mm
- Inductance Measurement Frequency: 0.1MHz
- Inductor Type: Power Inductor
- No. of Pins: 2Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Reel Quantity: 2500
- Resonant Frequency: 76MHz
- Tape Width: 12mm
- Termination Type: Surface Mount Device
- Tolerance +: 20%
