description

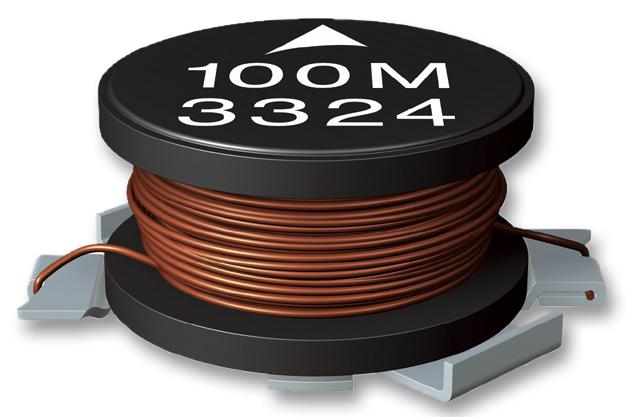

EPCOS - B82462A4154K000 - Power Inductor (SMD), 150 µH, 290 mA, Unshielded, 490 mA
- Inductance: 150µH
- RMS Current (Irms): 290mA
- Inductor Construction: Unshielded
- Saturation Current (Isat): 490mA
- Product Range: -
- DC Resistance Max: 1.76ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (07-Jul-2017)
- Attenuation Frequency Range: 100 kHz
- Climatic Category: 55/125/56
- External Depth: 6mm
- External Length / Height: 3mm
- External Width: 6mm
- Inductance Measurement Frequency: 0.1MHz
- Inductor Type: Inductor
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Reel Quantity: 2500
- Resonant Frequency: 7.5MHz
- Self Resonant Frequency Min: 7.5MHz
- Tape Width: 12mm
- Termination Type: Surface Mount Device
