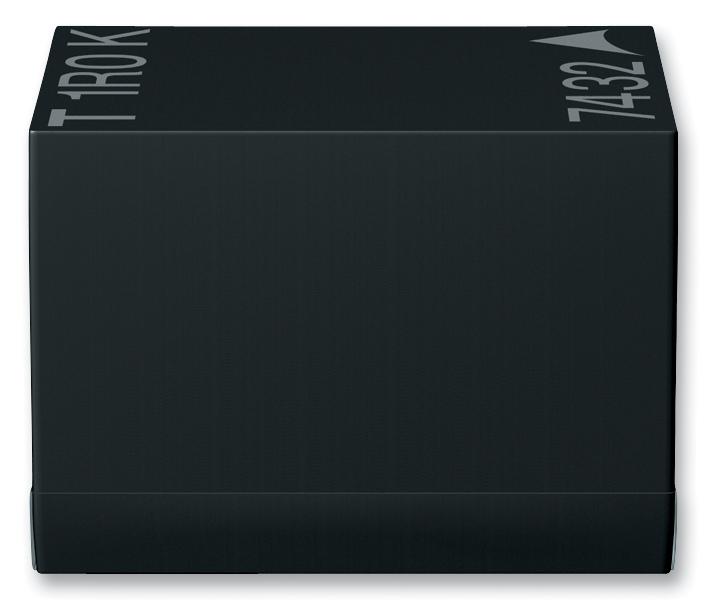

EPCOS - B82432T1105K000 - Wirewound Inductor, 1 mH, 30 ohm, 2.3 MHz, 70 mA, 1812 [4532 Metric], B82432T
- Inductance: 1mH
- Product Range: -
- DC Current Rating: 70mA
- High Frequency Inductor Case: 1812 [4532 Metric]
- Inductor Construction: Wirewound
- DC Resistance Max: 30ohm
- Inductance Tolerance: ± 10%
- Self Resonant Frequency Min: 2.3MHz
- SVHC: No SVHC (07-Jul-2017)
- Core Material: Ferrite
- Inductor Case Style: 1812 [4532 Metric]
- Q Factor: 20
- Q Test Frequency: 252kHz
- Reel Quantity: 2500
