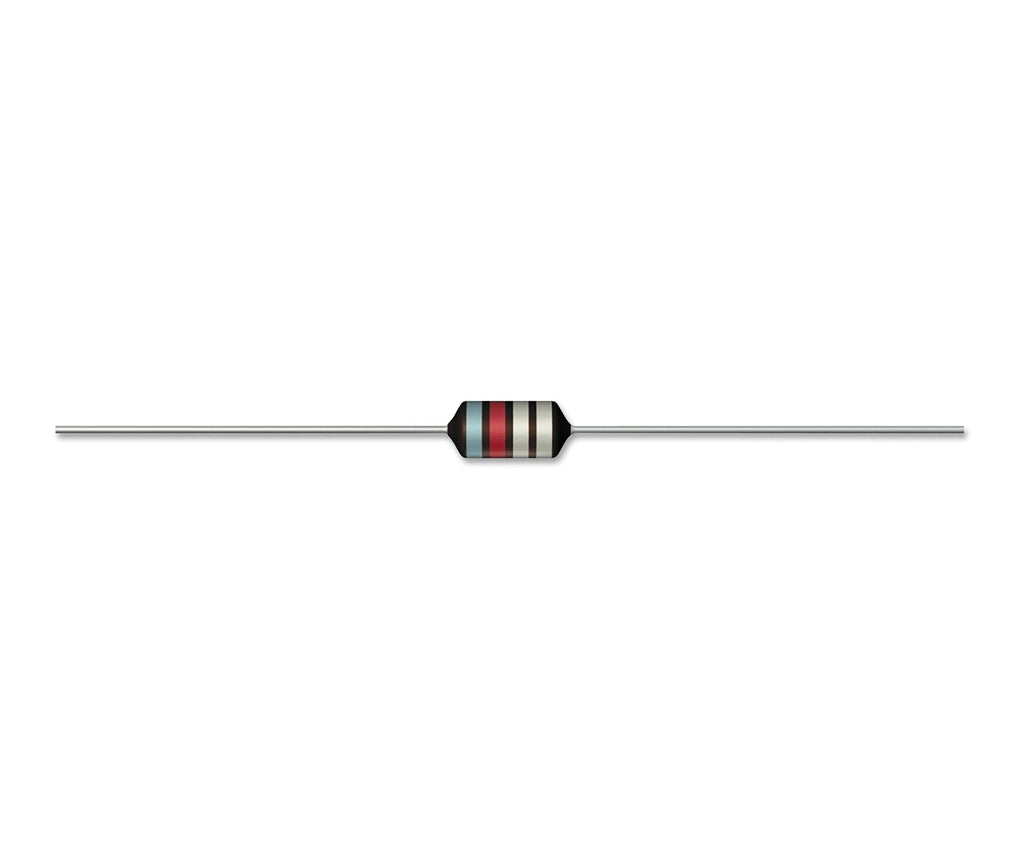

B82144A2226J000 Inductor, 22MH, 5%, 40mA, 260kHz EPCOS

EPCOSUGS :B82144A2226J000 Code de commande:517938

Prix:
Prix ​​promotionnel€0,85

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2020 unité)

Documents et téléchargements

description

EPCOS - B82144A2226J000 - RF Choke, B82144A LBC, 22 mH, 40 mA, 120 ohm, ± 5%, 260 kHz

  • Product Range: B82144A LBC Series
  • Inductance: 22mH
  • DC Current Rating: 40mA
  • DC Resistance Max: 120ohm
  • Inductance Tolerance: ± 5%
  • Self Resonant Frequency Min: 260kHz
  • SVHC: Lead (27-Jun-2018)
  • Body Diameter: 5.2mm
  • Climatic Category: 55/125/56
  • Core Material: Ferrite
  • Current Rating: 40mA
  • External Length / Height: 14.8mm
  • Inductance Measurement Frequency: 0.01MHz
  • Inductor Case Style: Axial Leaded
  • Inductor Type: High Frequency / RF
  • Lead Diameter: 0.63mm
  • No. of Pins: 2Pins
  • Q Factor: 50
  • Q Test Frequency: 79.6kHz
  • Tolerance +: 5%
  • Tolerance -: 5%
