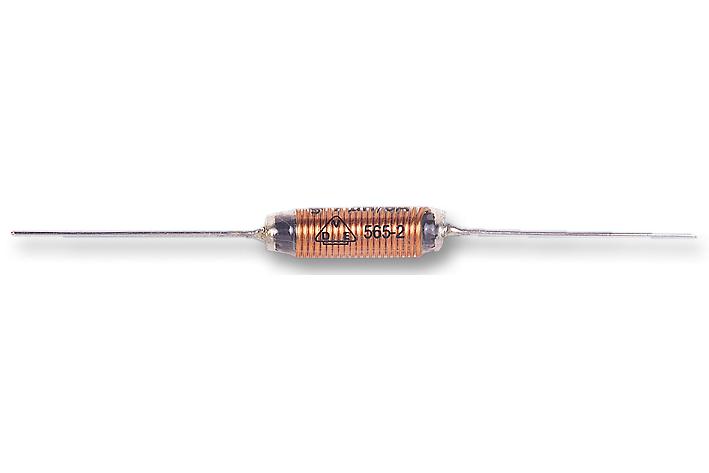

EPCOS - B82111E0000C025 - RF Choke, B82111E, 100 µH, 1 A, 0.65 ohm, ± 20%, 55 MHz
- Product Range: B82111E Series
- Inductance: 100µH
- DC Current Rating: 1A
- DC Resistance Max: 0.65ohm
- Inductance Tolerance: ± 20%
- Self Resonant Frequency Min: 55MHz
- SVHC: Lead (27-Jun-2018)
- Approval Category: VDE 565-2
- Body Diameter: 6.5mm
- Climatic Category: 55/125/56
- Core Material: Ferrite
- External Length / Height: 26mm
- Height: 26mm
- Inductor Type: Choke
- Resonant Frequency: 55MHz
- Voltage Rating V DC: 500V
- Voltage Rating VAC: 500V
