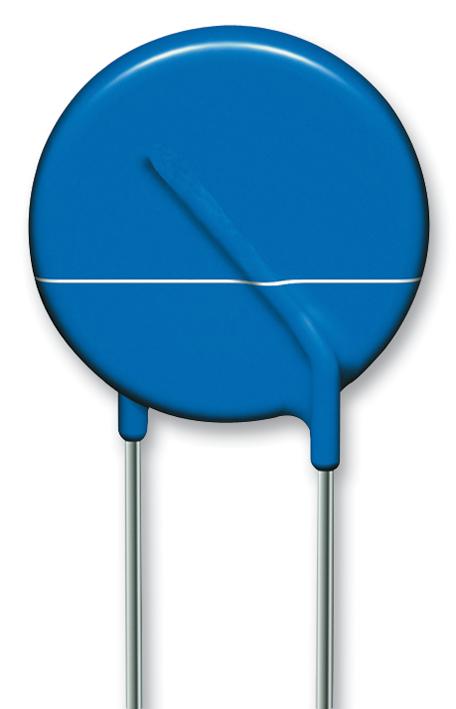

EPCOS - B72214S0421K151 - TVS Varistor, 420 V, 560 V, StandarD, 1.12 kV, Disc 14mm, Metal Oxide Varistor (MOV)
- Voltage Rating VAC: 420V
- Voltage Rating V DC: 560V
- Product Range: StandarD Series
- Clamping Voltage Vc Max: 1.12kV
- Varistor Case Style: Disc 14mm
- Varistor Type: Metal Oxide Varistor (MOV)
- Peak Surge Current @ 8/20µs: 4.5kA
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 90J
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Operating Temperature Range: -40°C to +85°C
- Reel Quantity: 1000
