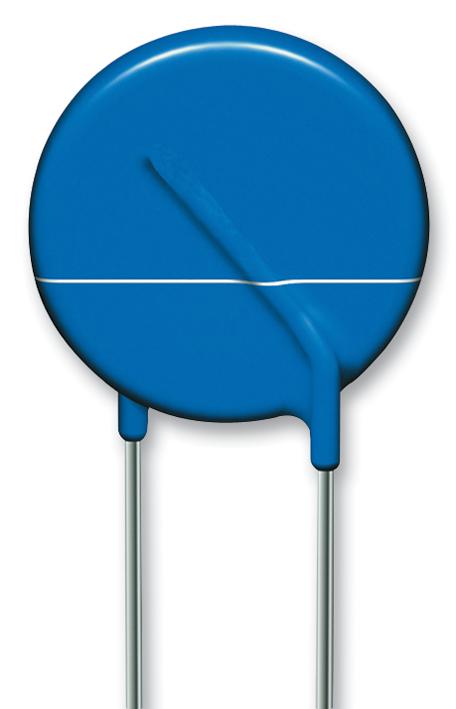

EPCOS - B72210S0250K151 - TVS Varistor, 25 V, 31 V, StandarD, 77 V, Disc 10mm, Metal Oxide Varistor (MOV)
- Voltage Rating VAC: 25V
- Voltage Rating V DC: 31V
- Product Range: StandarD Series
- Clamping Voltage Vc Max: 77V
- Varistor Case Style: Disc 10mm
- Varistor Type: Metal Oxide Varistor (MOV)
- Peak Surge Current @ 8/20µs: 500A
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 3.7J
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Operating Temperature Range: -40°C to +85°C
- Reel Quantity: 1500
