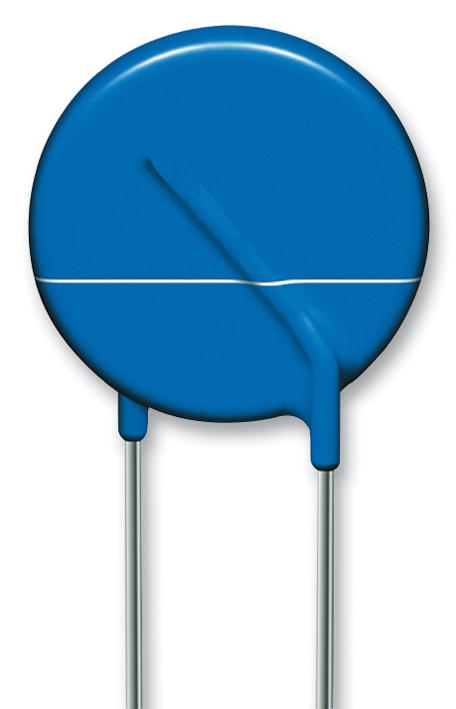

EPCOS - B72205S0140K111 - TVS Varistor, 14 V, 18 V, StandarD, 43 V, Disc 5mm, Metal Oxide Varistor (MOV)
- Voltage Rating VAC: 14V
- Voltage Rating V DC: 18V
- Product Range: StandarD Series
- Clamping Voltage Vc Max: 43V
- Varistor Case Style: Disc 5mm
- Varistor Type: Metal Oxide Varistor (MOV)
- Peak Surge Current @ 8/20µs: 100A
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 400mJ
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Operating Temperature Range: -40°C to +85°C
- Reel Quantity: 1500
