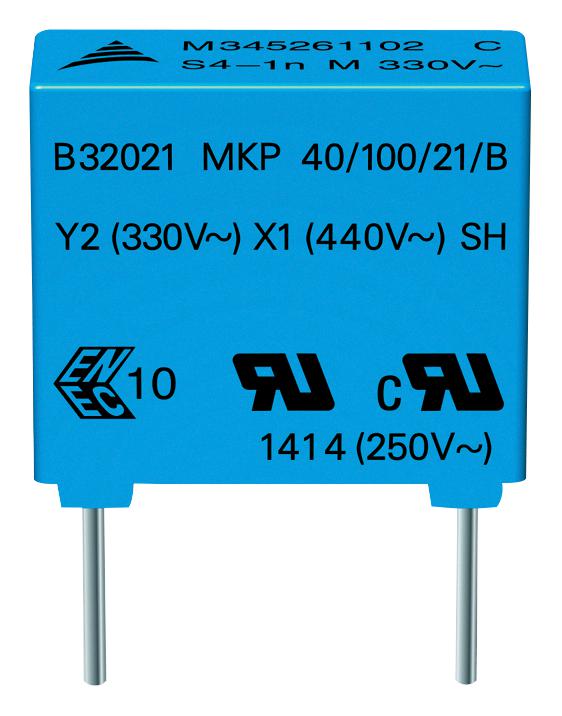

EPCOS - B32021A3222M189 - Safety Capacitor, Metallized PP, Radial Box - 2 Pin, 2200 pF, ± 20%, Y2, Through Hole
- Capacitance: 2200pF
- Suppression Class: Y2
- Product Range: B32021 Series
- Voltage Rating X: -
- Voltage Rating Y: 300V
- Capacitor Dielectric Type: PP (Polypropylene)
- Capacitance Tolerance: ± 20%
- dv/dt Rating: 800V/µs
- Capacitor Case Style: -
- Capacitor Terminals: Radial Leaded
- Operating Temperature Min: -40°C
- Operating Temperature Max: 110°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Voltage Rating VAC: 300V
