description

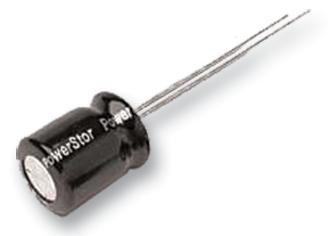

EATON BUSSMANN - B0510-2R5224-R - Supercapacitor, PowerStor®, EDLC, 0.22 F, 2.5 V, Radial Leaded, -20%, +80%, 2 mm, 1000 hours @ 70°C
- Capacitance: 0.22F
- Voltage Rating: 2.5V
- Capacitor Terminals: Radial Leaded
- Product Range: B Series
- Capacitance Tolerance: +80%, -20%
- Lead Spacing: 2mm
- Lifetime @ Temperature: 1000 hours @ 70°C
- Operating Temperature Min: -25°C
- Operating Temperature Max: 70°C
- ESR: 2ohm
- Capacitor Case Style: Can
- Diameter: 5mm
- Height: 11mm
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: +80%, -20%
- Operating Temperature Range: -25°C to +70°C
