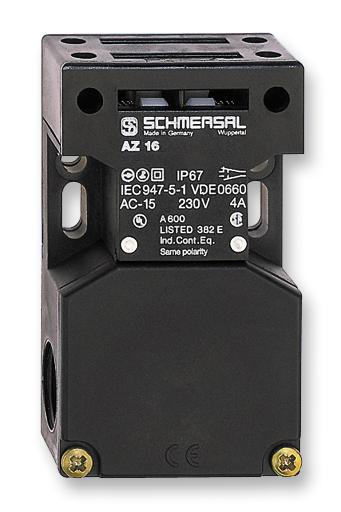

SCHMERSAL - AZ16-12ZVRK-2254 - Safety Interlock Switch, AZ 15, 1NO / 1NC, Screw, 230 V, 4 A
- Product Range: AZ 15 Series
- Contact Configuration: 1NO / 1NC
- Switch Terminals: Screw
- Contact Voltage AC Max: 230V
- Contact Current AC Max: 4A
- IP Rating: -
- Contact Voltage DC Max: 24V
- Contact Current DC Max: 4A
- SVHC: No SVHC (17-Dec-2015)
- Contact Rating: 4A
- External Depth: 30mm
- External Length / Height: 75mm
- External Width: 52mm
- Fixing Centres: 40mm
- IP / NEMA Rating: IP67
- Insulation Voltage: 500V
- No. of Conduit Entries: 3
- No. of Mechanical Operations: 1000000
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Thermal Current Rating: 10A
