description

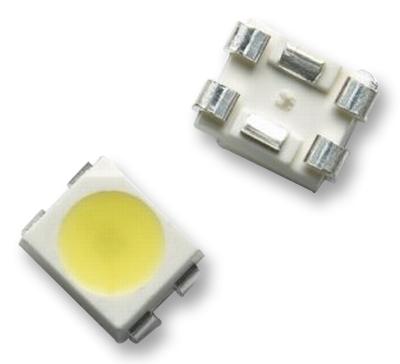

BROADCOM - ASMT-QWBC-NJK0E - LED, Cool White, SMD, 2.4mm, 150 mA, 3.4 V, 2.5 cd
- LED Colour: Cool White
- LED Mounting: SMD
- Bulb Size: 2.4mm
- Forward Current If: 150mA
- Forward Voltage: 3.4V
- Luminous Intensity: 2.5cd
- Viewing Angle: 120°
- Lens Shape: Round
- Product Range: ASMT Series
- Automotive Qualification Standard: -
- MSL: MSL 2 - 1 year
- SVHC: No SVHC (27-Jun-2018)
- CCT: 7000K
- Forward Current If Max: 150mA
- Forward Voltage @ Test: 3.8V
- Luminous Flux @ Max: 56lm
- Luminous Flux @ Test: 40lm
- No. of Pins: 4Pins
- Operating Temperature Max: 120°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +120°C
- Power Dissipation Pd: 570mW
