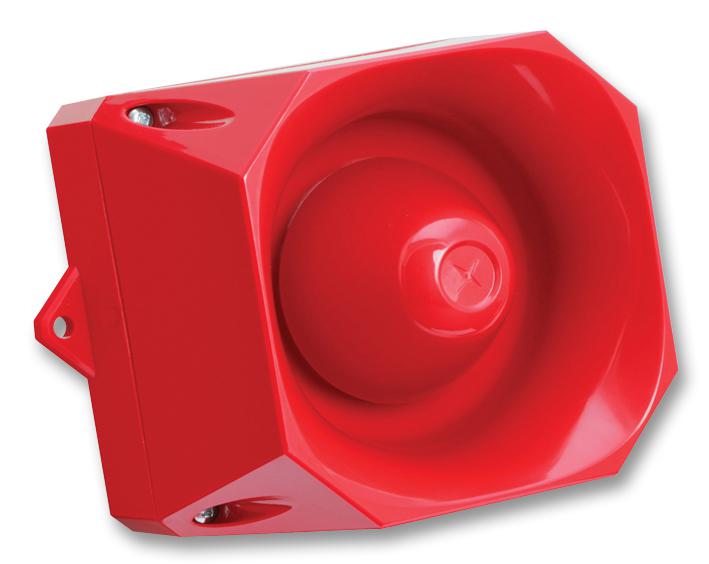

FULLEON - AS/M/S/115/230/R - Sounder, Midi, Multiple Tones, 110dB, 230VAC, 120mA, IP66, 132mm Ext. Depth
- Supply Voltage V AC: 230VAC
- Supply Voltage V DC: -
- Tones: Multiple Tones
- Sound Level SPL: 110dB
- IP / NEMA Rating: IP66
- Product Range: Asserta MIDI Series
- Resonant Frequency: -
- Current Consumption: 120mA
- External Depth: 132mm
- Operating Temperature Min: -20°C
- Operating Temperature Max: 70°C
- SVHC: No SVHC (17-Dec-2015)
- Colour: Red
- External Height: 136mm
- External Length / Height: 136mm
- External Width: 165mm
- Input Current: 22mA
- Material: ABS
- Operating Temperature Range: -20°C to +70°C
- Sound Level Max: 110dB
- Supply Voltage: 230VAC
- Supply Voltage AC Max: 230VAC
- Supply Voltage AC Min: 115VAC
- Supply Voltage Max: 230VAC
- Supply Voltage Min: 115VAC
- Supply Volts: 115V AC to 230V AC
- Transducer Function: Sounder
- Weight: 0.8kg
