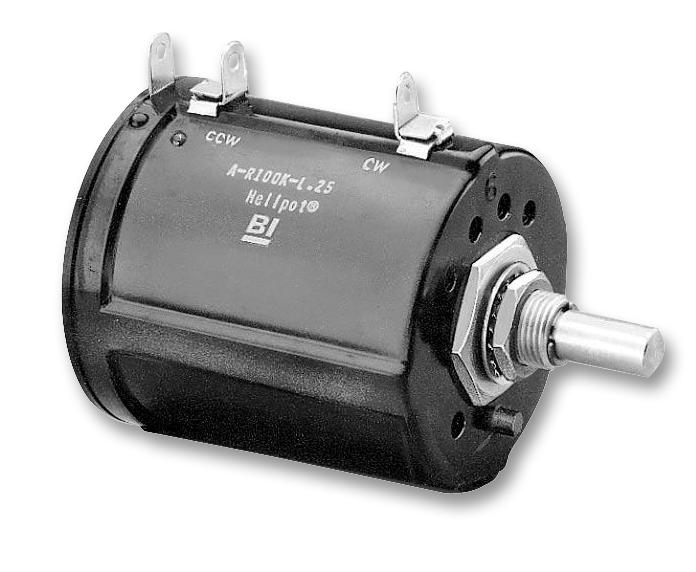

TT ELECTRONICS / BI TECHNOLOGIES - AR20KL.25LF - Rotary Potentiometer, Wirewound, 20 kohm, 10 Turns, Linear, 5 W, ± 1%, A
- Track Resistance: 20kohm
- No. of Turns: 10Turns
- Track Taper: Linear
- Power Rating: 5W
- Resistance Tolerance: ± 1%
- Product Range: A Series
- Potentiometer Mounting: Panel
- Shaft Diameter: 6.34mm
- No. of Gangs: 1
- Adjustment Type: Screwdriver Slot
- Shaft Length: 20.6mm
- SVHC: No SVHC (20-Jun-2016)
- Body Diameter: 46.03mm
- Operating Temperature Max: 85°C
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +85°C
- Resistor Element Material: Wirewound
- Temperature Coefficient: ± 130ppm/°C
- Termination Type: Solder
- Voltage Rating: 1kV
