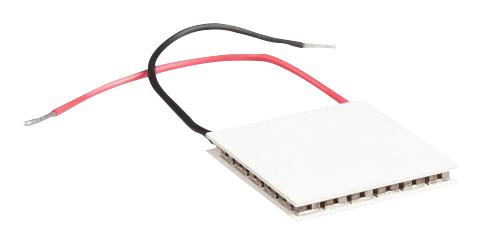

EUROPEAN THERMODYNAMICS - APHC-07107-S - Thermoelectric Peltier Cooler Module, Single Stage, 39 W, 7.4 A, 8.2 VDC, 30mm x 30mm x 3.5mm
- Transducer Function: Thermoelectric Cooler
- Power Rating: 39W
- Internal Resistance: 0.9ohm
- Current Max @ Diff Temperature Max: 7.4A
- Voltage Max @ Diff Temperature Max: 8.2V
- Temperature Difference Max: 65°C
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
