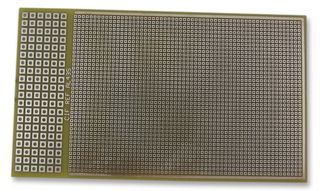

CIF - AL435 - Testboard, Prototype, Epoxy, 0.7mm, 53mm x 95mm
- Board Type: Matrix Board
- Board Material: Epoxy
- Hole Diameter: 1mm
- External Height: 53mm
- External Width: 95mm
- Board Thickness: 0.7mm
- SVHC: No SVHC (15-Jan-2019)
- External Length / Height: 53mm
- Hole Pitch: 1.27mm
- Material: Epoxy (0.7mm)
- Pitch Spacing: 1.27mm
- Row Pitch: 2.54mm
