description

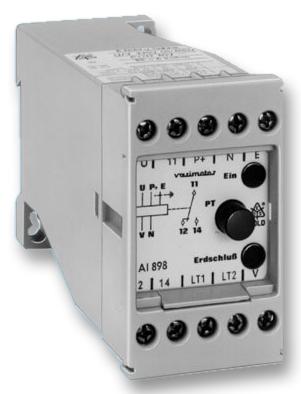

DOLD - AI 898 DC24V 6K UH AC45 - 400HZ 230V - Voltage Monitoring Relay, AI898, SPDT, 5 A, DIN Rail, 230 VAC, Screw
- Product Range: AI898 Series
- Contact Configuration: SPDT
- Contact Current: 5A
- Relay Mounting: DIN Rail
- Contact Voltage VAC: 230VAC
- Relay Terminals: Screw
- Contact Voltage VDC: -
- Supply Voltage Max: 220V
- Power Consumption: -
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CE, EN, IEC
- Coil Frequency Max: 400Hz
- Coil Operating Frequency Min: 45Hz
- Coil Voltage VAC Nom: 230V
- Contact Current AC Max: 5A
- Contact Voltage AC Max: 230V
- Control Voltage Type: DC
- External Depth: 115mm
- External Length / Height: 77mm
- External Width: 45mm
- Nom Input Voltage: 24VDC
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
- Supply Frequency: 50Hz
- Switch Current Max: 5A
- Switching Current Max: 5A
- Type: 0001044
