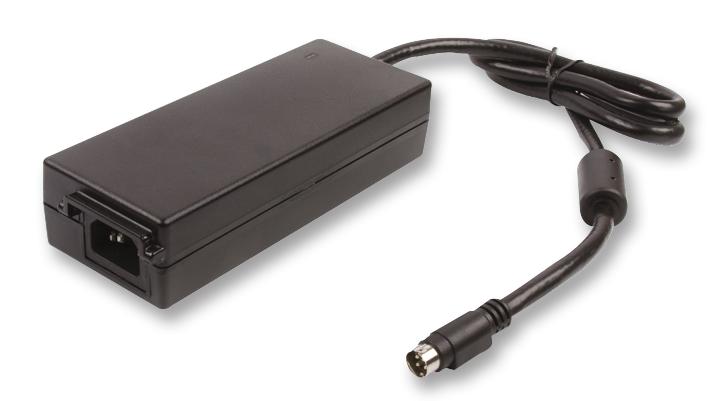

XP POWER - AHM180PS24 - AC/DC Power Supply, ITE & Medical, 1 Output, 180 W, 24 V, 7.5 A
- No. of Outputs: 1 Output
- Output Power Max: 180W
- Output Voltage - Output 1: 24V
- Output Current - Output 1: 7.5A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Connector: 4 Way Mini DIN
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Power Supply Output Type: Fixed
- Input Voltage VAC: 80V AC to 264V AC
- Product Range: AHM Series
- Plug Type: Mains Plug Sold Separately
- SVHC: No SVHC (15-Jan-2018)
- Applications: Medical
- Approvals / Standards: CSA 22.2 No. 60601, EN 55011, EN 60601, ES 60601
- External Depth: 80mm
- External Length / Height: 37mm
- External Width: 200mm
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 80V
- Lead Length: 900mm
- No. of Outputs: 1Outputs
- Output Current Max: 7.5A
- Power Rating: 180W
