description

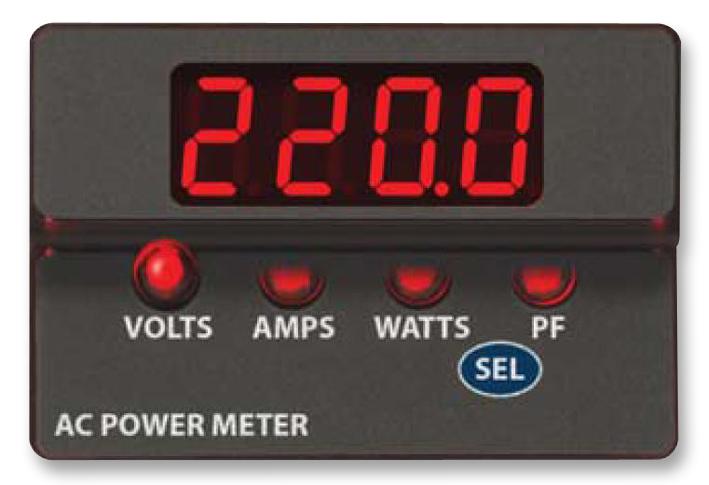

MURATA POWER SOLUTIONS - ACM20-5-AC1-R-C - Digital Panel Meter, LED, 4 Digits, Four Function, Current, Voltage, Active Power, Power Factor
- No. of Digits / Alpha: 4
- Meter Function: AC Current / AC Voltage / Power / Power Factor
- Meter Range: 0A to 32A, 85V to 264V, 0W to 9999W
- Digit Height: 9.14mm
- Panel Cutout Height: 22.1mm
- Panel Cutout Width: 36.22mm
- Supply Voltage Min: 85VAC
- Supply Voltage Max: 264VAC
- Operating Temperature Min: 0°C
- Operating Temperature Max: 60°C
- Product Range: ACM20 Series
- SVHC: No SVHC (07-Jul-2017)
- Input Current Range: 0A to 32A
- Operating Temperature Range: 0°C to +60°C
- Power Consumption: 250mW
- Supply Voltage Range: 85V AC to 264V AC
