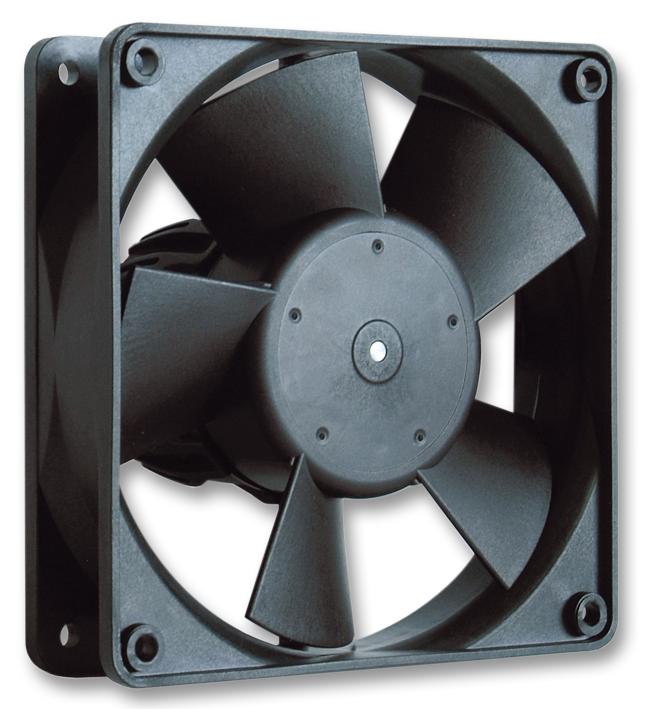

EBM-PAPST - AC4300 H - AC Axial Fan, 115V / 230V, Square, 119 mm, 32 mm, Ball Bearing, 120 CFM
- Supply Voltage: 230V
- Current Type: AC
- Fan Frame Size: 119mm
- External Depth: 32mm
- Noise Rating: 51dBA
- Flow Rate - Imperial: 120cu.ft/min
- Flow Rate - Metric: 204m³/h
- Bearing Type: Ball
- Power Connection Type: 2 Lead Wires
- Current Rating: -
- Product Range: ACmaxx Series
- Power Rating: 11W
- IP Rating: IP21
- SVHC: No SVHC (15-Jan-2019)
- Case Material: PBTP
- External Height: 119mm
- External Width: 119mm
- Frame Dimensions: 119mm x 119mm x 64mm
- IP / NEMA Rating: IP54
- Input Voltage Max: 265VAC
- Input Voltage Min: 85VAC
- Material: PA
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Power Consumption: 11W
- Speed Range Max: 3400rpm
- Weight: 325g
