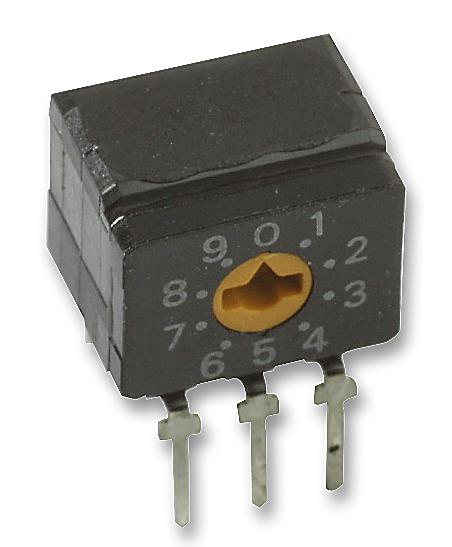

OMRON - A6CV-10R - Rotary Switch, 10 Position, 1 Pole, 36 °, 250 V, A6C
- No. of Switch Positions: 10 Position
- No. of Poles: 1 Pole
- Angle of Throw: 36°
- Contact Current AC Max: -
- Contact Voltage AC Max: 250V
- Product Range: A6C Series
- Illumination: Non Illuminated
- Contact Current DC Max: 100mA
- Contact Voltage DC Max: 30V
- Actuator Level: Flushed
- Angle: 36°
- Contact Current @ Contact Voltage DC Max: 100mA
- Contact Current @ Contact Voltage DC Min: 100µA
- Contact Current Rating: 0.1A
- Contact Resistance: 100mohm
- External Depth: 9mm
- External Length / Height: 9.1mm
- External Width: 7.1mm
- Height Max: 9.1mm
- Indexing Angle: 36°
- Insulation Resistance: 100Mohm
- No. of Electrical Operations: 2000
- No. of Mechanical Operations: 10000
- No. of Positions: 10Ways
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Output Code: BCD
- Pin Length: 3.5mm
- Switch Construction: Sealed
- Switch Mounting: Through Hole
- Switching Current: 100mA
- Switching Voltage: 30VDC
