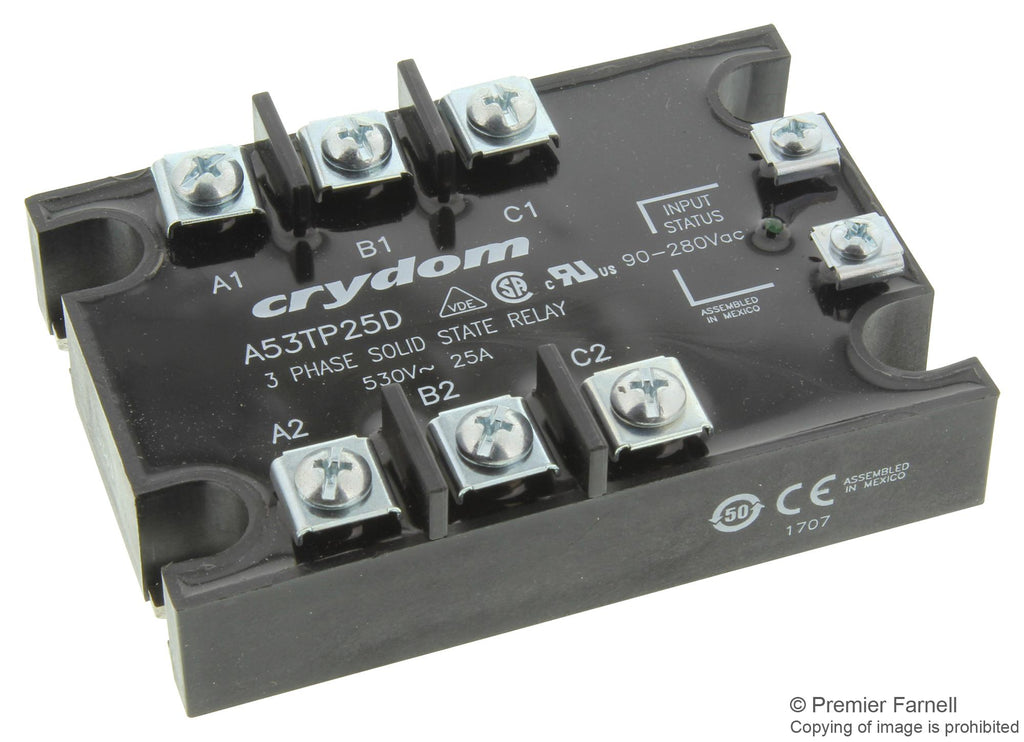

SENSATA/CRYDOM - A53TP25D - Solid State Contactor, 25 A, 530 VAC, 280 VAC, Zero Crossing, Panel, Screw
- Load Current: 25A
- Operating Voltage Max: 530VAC
- Control Voltage Max: 280VAC
- Switching Mode: Zero Voltage Turn On
- Contactor Mounting: Panel
- Contactor Terminals: Screw
- Operating Voltage Min: 48VAC
- Control Voltage Min: 90VAC
- Product Range: 53TP Series
- SVHC: No SVHC (07-Jul-2017)
- Blocking voltage: 1200V
- Contact Configuration: SPST-NO
- Control Voltage AC Max: 280VAC
- Control Voltage AC Min: 90VAC
- Control Voltage Range: 90V AC to 280V AC
- Control Voltage Type: AC
- External Depth: 22mm
- External Length / Height: 104mm
- External Width: 73.5mm
- Fixing Centres LxW: 92 x 47.6mm
- I2t: 450s
- Isolation Voltage: 4kV
- Load Current Max: 45A
- Load Current Min: 50mA
- Load Current RMS Max: 25A
- Must Release Voltage: 100V
- No. of Phases: Three Phase
- On State Resistance Max: 16.7kohm
- Operating Frequency Max: 65Hz
- Operating Frequency Min: 25Hz
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Operating Voltage Range: 48Vrms to 530Vrms
- Output Type: SCR
- RMS Load Current Min: 0.05A
